24 Litre Aquasystems ARB24 Potable Expansion Vessel 3.5 Bar with Integrated Bracket - XVES050066

Brand: Aquasystems

Color: White

Features:

• Potable Water Expansion Vessel
• 24 Litre Capacity
• Integrated Wall Bracket
• Replaceable EPDM membrane
• WRAS Approved

model number: Aquasystems ARB24

Part Number: XVES050066

Details: 24 Litre Aquasystems ARB24 Potable Expansion Vessel 3.5 Bar with Integrated Bracket - XVES050066
The Aquasystems ARB Potable Expansion Vessels are manufactured to comply with UK water regulations and are tested and certified by WRAS. The vessels are supplied with a replaceable membrane and feature an integrated wall bracket. They come complete with wall bracket accessories as pictured. The main purpose of the vessel is to compensate for the increase in volume of water due to the varying water temperatures in the system, e.g. Water being heated from 0°C - 100°C will increase by approx 4.5%.
Features:
* Aquasystems potable water expansion vessel
* Vessel incorporates an integrated wall bracket

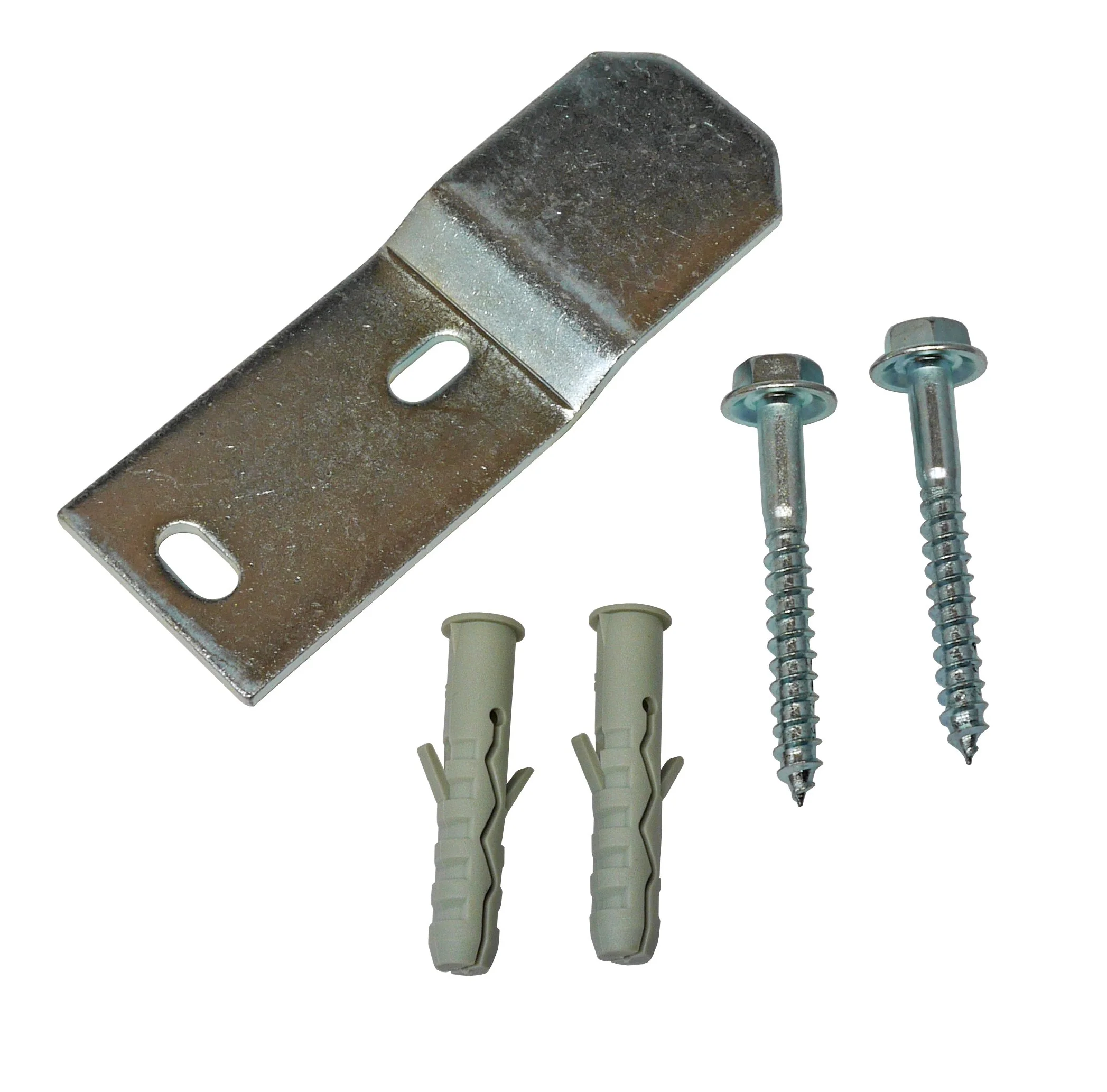

* Comes with wall bracket accessories as pictured
* White Epoxy coated steel container
* Replaceable EPDM membrane
* Pre-Charge: 3.5 Bar
* Maximum Pressure: 10.0
* Test Pressure: 10.0
* Temperature Range: -10°C - 100°C
* Suitable for Fluid Group 2
* WRAS Approved
Specification:
* Capacity: 24 Litre
* Pre-Charge: 3.5 Bar
* Maximum Pressure: 10.0
* Test Pressure: 10.0
* Temperature Range: -10°C - 100°C
* Suitable for Fluid Group 2

EAN: 0708747445817
