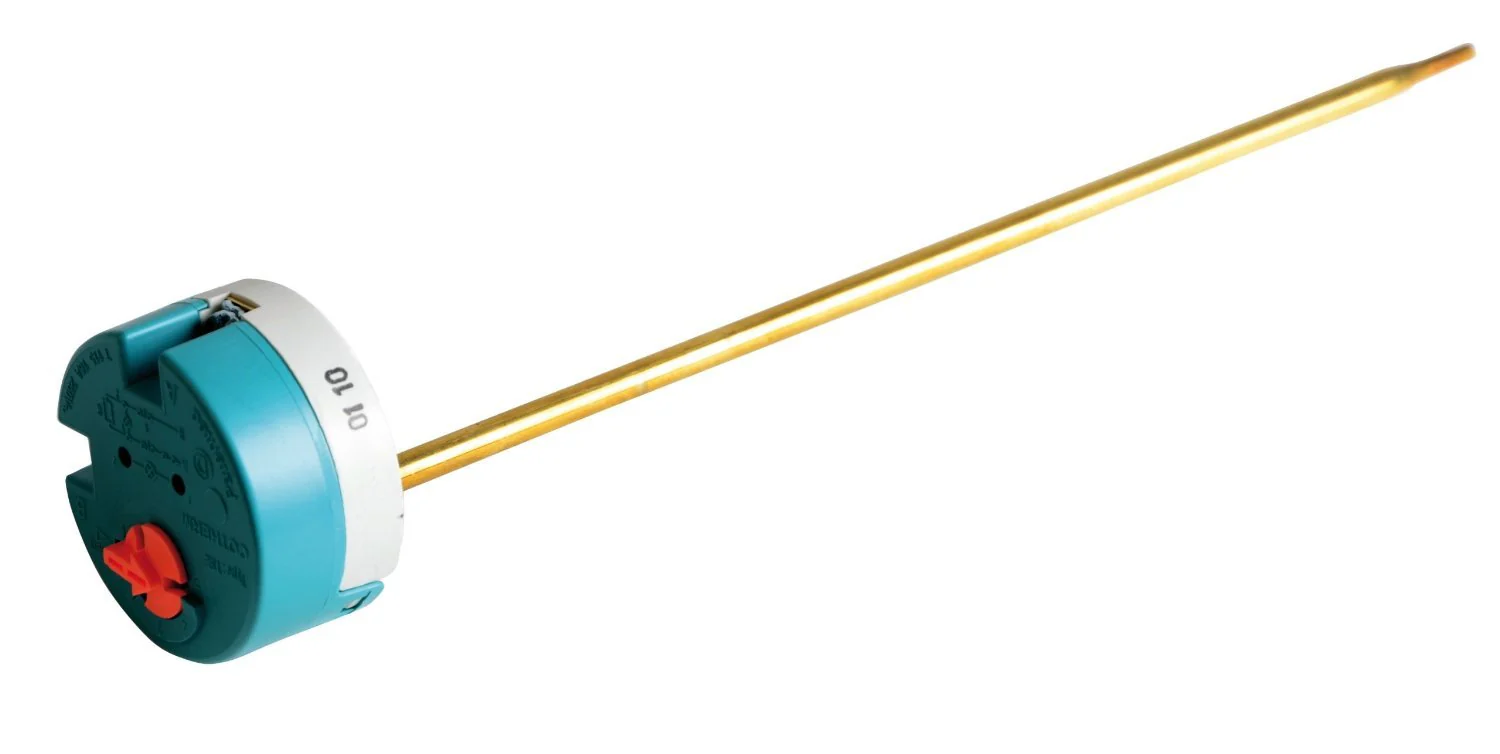

Cotherm Replacement Immersion Stat TSE00187

Brand: Cotherm

Features:

• Combined control and safety function
• Patented MFS technology or traditional bimetal for independent non self resetting safety option
• Direct plug-in to heating element to reduce wiring and mounting costs
• Tamper proof housing
• Factory pre-set fixed temperature, OEM adjustable or end-user adjustable temperature

Part Number: TSE00187

Details: Cotherm Replacement Immersion Stat TSE00187

Compatible with:

Heatrae Sadia Megaflo
Santon Premier
RM Cylinders
Telford Cylinders
Kingspan Cylinders.

DESCRIPTION

Combistat with single pole stem control and double pole safety limiter.

FEATURES

Combined control and safety function
Patented MFS technology or traditional bimetal for independent non self resetting safety option
Direct plug-in to heating element to reduce wiring and mounting costs
Tamper proof housing
Factory pre-set fixed temperature, OEM adjustable or end-user adjustable temperature
Multiple control knob options
Connection for signal lamp

OPERATION

The differential expansion of the sensing element causes the opening of a snap-action switch in the thermostat head. In case of abnormal temperature rise, the patented MFS technology in the stem or traditional bimetal ensures double pole safety. The limiter is manually resettable.

Technical characteristics

TSE TSR TSEU Type Single pole stem control with double pole bimetal safety limiter
Single pole stem control with MFS technology double pole safety limiter
Single pole stem control Temperature range 0 °C to 160 °C / 32 °F to 320 °F
Differential 5% of the temperature range
Safety limiter temperature Fixed 65 °C-120 °C / 149 °F-248 °F Rating 16A-250V

Material Brass, invar, bimetal, MFS
Capillary length 137, 180, 220, 270, 350 and 450mm/5, 7, 8, 11, 14 and 18"
Sensing element diameter 6 mm/ 1/4"
Maximum head temperature 115 °C / 239 °F

Connections
Brass faston or pillar terminals

Approvals CE, EN 60730

EAN: 5060380350664
