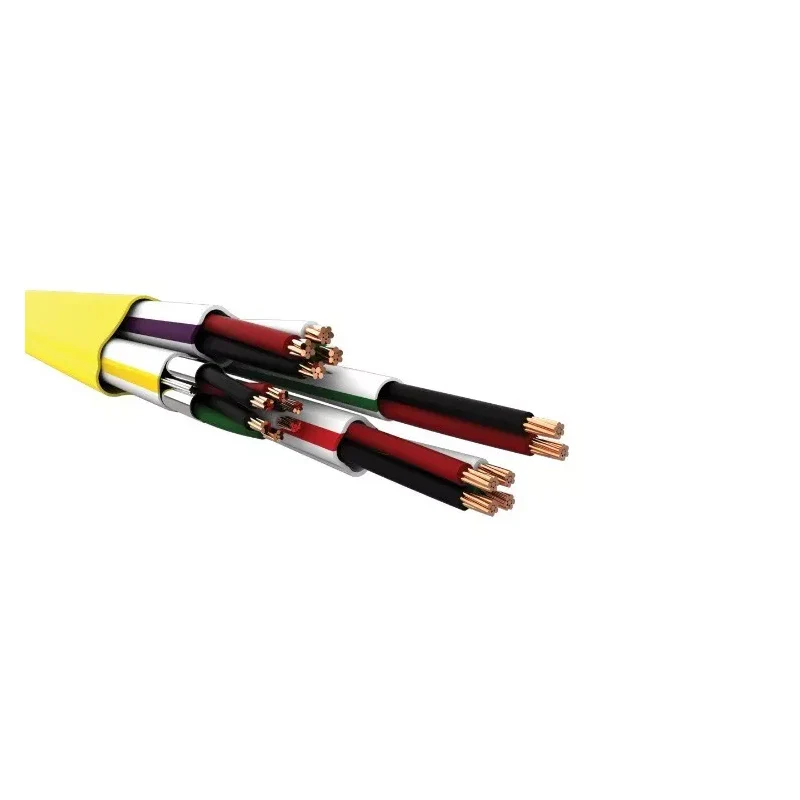

100' S16C4ECMP-04 18/4C + 22/3P + 22/2C + 22/4C Access Control Composite Cable



CONDUCTOR - ELEMENT 1 (18/4 UNSHIELDED)

• AWG Size & Stranding: 18 AWG 7 Strands Class B
• Material: Annealed Bare Copper
• Conductor Count: 4 Conductors

INSULATION - ELEMENT 1 (18/C UNSHIELDED)

• Material: Plenum Rated Polyvinylchloride
• Wall Thickness: 0.007”
• Color Code: Black, Red, White, Green

ASSEMBLY - ELEMENT 1 (18/4 UNSHIELDED)

• Nominal Lay Length: 2.50” LHL (4.80 Tw/Ft)
• Shield/Drain Wire: N/A

JACKET - ELEMENT 1 (18/4 UNSHIELDED)

• Material: Plenum Rated Polyvinylchloride
• Wall Thickness: 0.015”
• Diameter: 0.190”
• Color: Natural/Purple

CONDUCTOR - ELEMENT 2 (22/3P SHIELDED)

• AWG Size & Stranding: 22 AWG 7 Strands Class B
• Material: Annealed Bare Copper
• Conductor Count: 3 Pairs

INSULATION - ELEMENT 2 (22/3P SHIELDED)

• Material: Plenum Rated Polyvinylchloride
• Wall Thickness: 0.007”
• Color Code: Black x Red, Green x White, Orange x Brown

ASSEMBLY - ELEMENT 2 (22/3P SHIELDED)

• Pair Lay Length: 2.00” LHL (6.00 Tw/Ft)
• Cable Lay Length: 2.50” LHL (4.80 Tw/Ft)
• Cable Shield: Aluminum/Mylar – 100% Coverage
• Cable Drain Wire: 24 AWG 7 Strand Tinned copper

JACKET - ELEMENT 2 (22/3P SHIELDED)

• Ripcord: Yes
• Material: Plenum Rated Polyvinylchloride
• Wall Thickness: 0.015”
• Diameter: 0.183”
• Color: Natural/Yellow

PRODUCT SPECIFICATIONS

Material	Plenum Rated Polyvinylchloride
Wall Thickness (inches)	0.015
Diameter (inches)	0.412
Color	Yellow
Ripcord	Yes
Weight (lbs/1000ft)	104

***Free shipping on most orders.
Need the wire fast? Ask about our expedited shipping to get it to you on time. Signature required for all deliveries. Please note eBay's delivery dates are only estimates actual delivery dates may be faster or longer, please message us for exact delivery times.***

***All returns must be made within 30 days from the date of purchase or they will not be accepted. Nassau National Cable does not cover re-delivery fees, extraneous shipping expenses or change of address fees after shipping***
