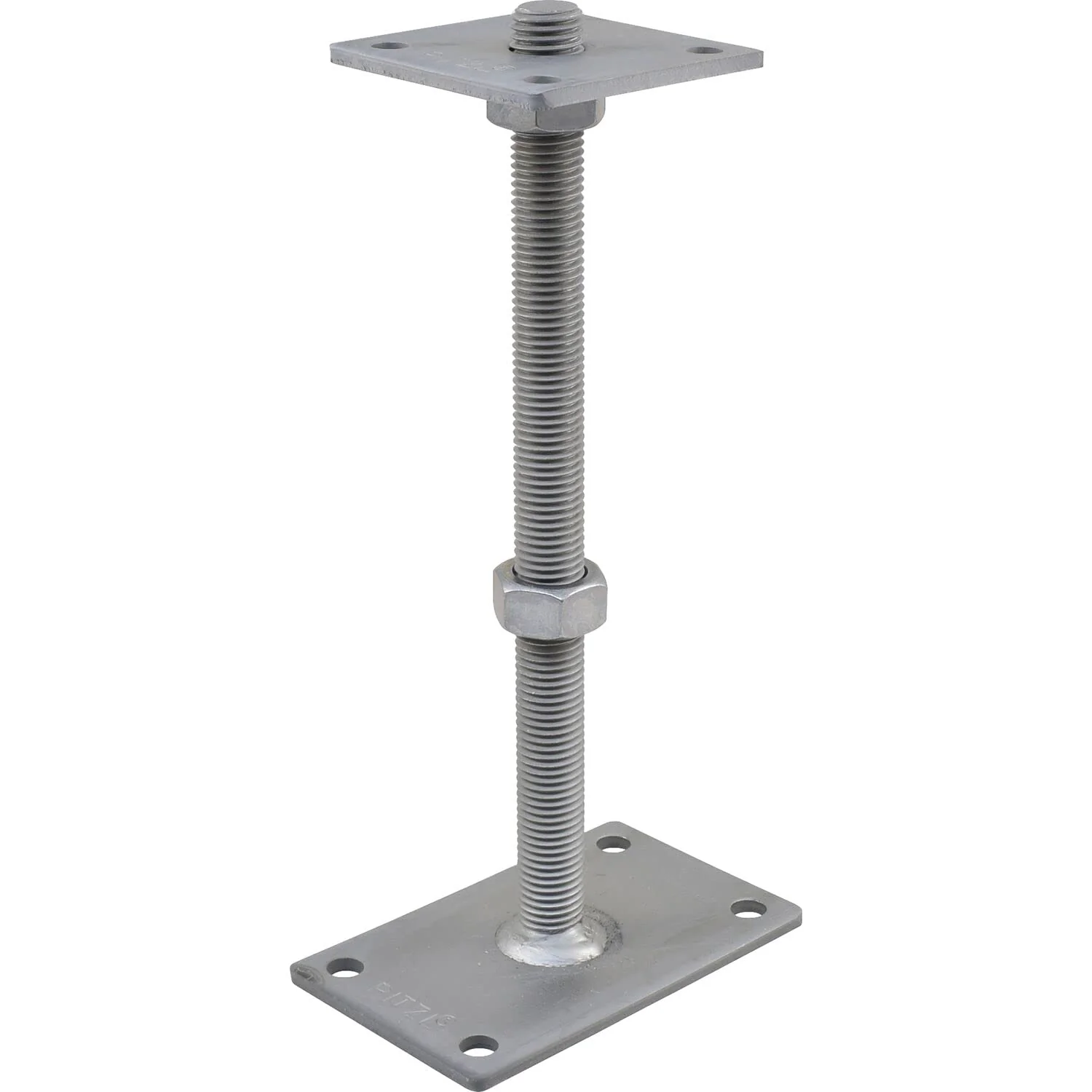

PITZL Post Anchor Type 11013.1300 ZiNiP Coated with Threaded Rod, Silver

Brand: Pitzl

Color: Silver

Features:

• Post anchor adjustable with threaded rods for doweling
• Thread M 24 (mm): 330
• Bottom plate (mm): 160x100x6
• Top plate (mm): 100x100x6
• High-quality ZiNiP coating

Binding: DIY & Tools

model number: 11013.1300

Part Number: PIT11013.1300

Details: Adjustable post supports with threaded rods for dowel are suitable for holding vertical and horizontal loads. Attachment: flat head screw 10 x 120 or frame screw (DIN 571) and anchor bolts or concrete screws 12 mm. With European Technical Rating (ETA 10/0413) for Type 1014, 1015 and 1016.

EAN: 4251409405118

Package Dimensions: 13.9 x 7.1 x 5.1 inches
