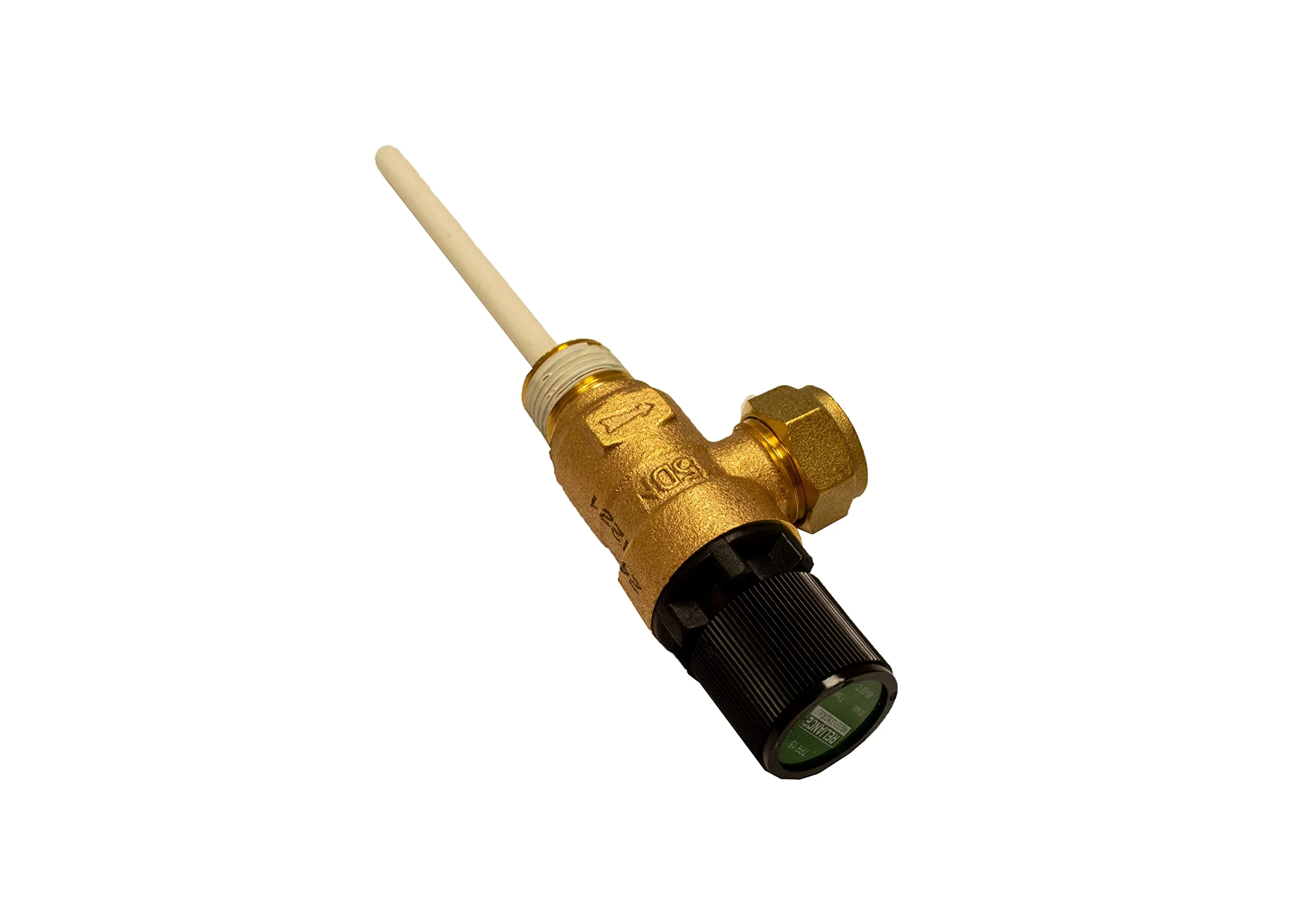

Reliance TPR15 7 Bar Metal Pressure and Temperature Relief Valve 90-95°C

Brand: Generic

Features:

• Valve Size: 1/2" MBSP (Inlet), 15mm Compression (Outlet)
• Pressure Setting: 7 Bar
• Temperature Setting: 90-95°C
• Dimensions: W-52.00mm D-32.00mm H-197.00mm

model number: TPR15

Details: 7 Bar TPR15 Pressure and Temperature Relief Valve 90-95°C Details: Valve Size: 1/2" MBSP (Inlet), 15mm Compression (Outlet) Pressure Setting: 7 Bar Temperature Setting: 90-95°C Dimensions: W-52.00mm D-32.00mm H-197.00mm 7 Bar TPR15 Pressure and Temperature Relief Valve 90-95°C Designed to relieve and control the temperature and pressure within an unvented hot water system, preventing the water in a tank from reaching 100°C. When the pre-set conditions are reached this valve will discharge the correct quantity of water to return the system to within it's operating limits. Designed following the demands of manufacturers for a more aesthetic, modern design to complement the finish of modern unvented units, the twist top valve features a cartridge construction which extends serviceability and lifespan and has the added benefit of direct compression fittings for the discharge pipework. The twist-top pressure & Temperature relief valve has also been designed to conform to the requirements of the latest European safety standards.

Package Dimensions: 10.9 x 4.0 x 2.6 inches
